RM3100 Sensor breakout - M10073
The 3DR M10073 is a sensor-on-board assembly that was first designed for in-house designs, then released to the public. Designed to integrate PNI's RM3100 sensor suite at a board level, we bring this solderable module to lower complexity and bring down costs for your project.
More info about the sensor can be found here.

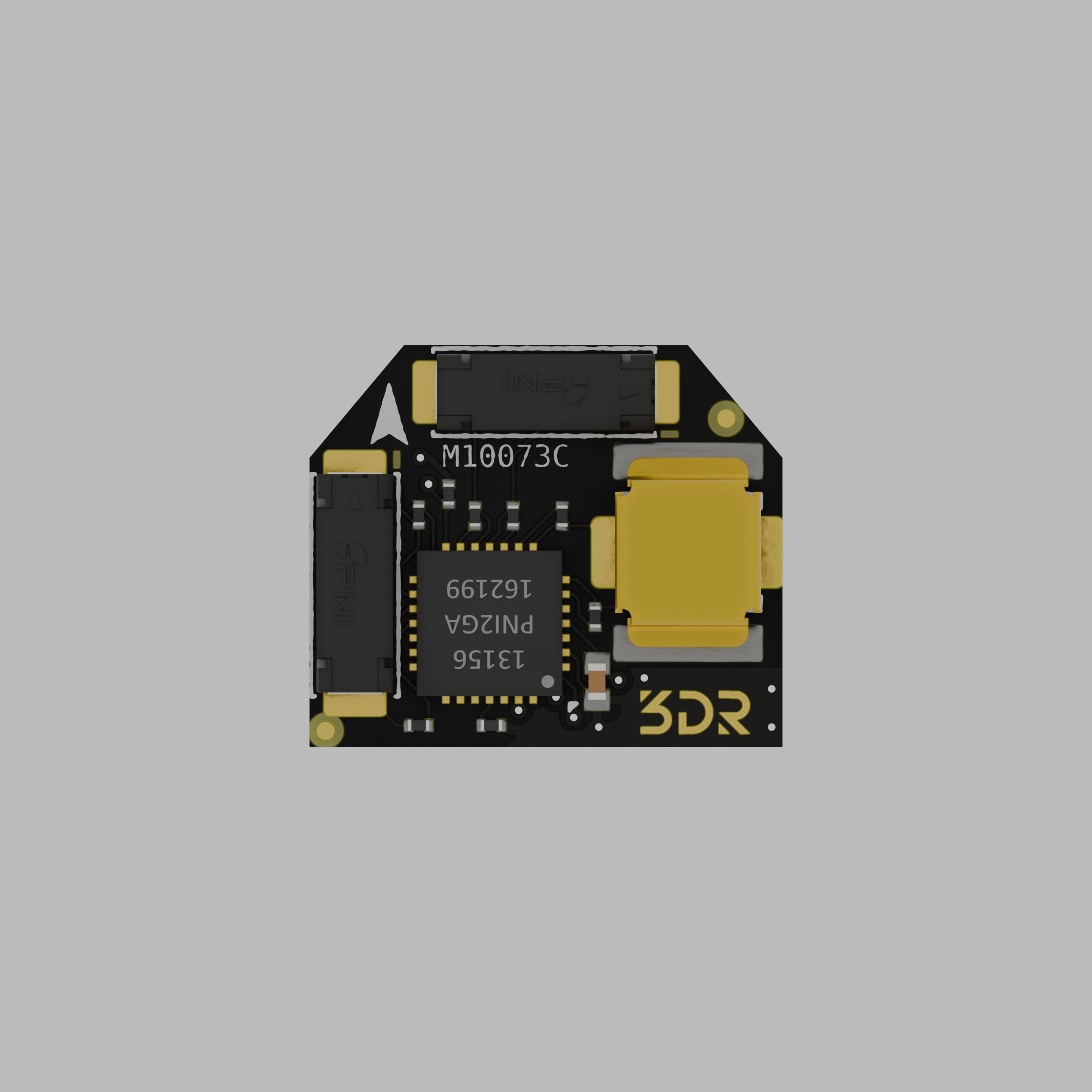

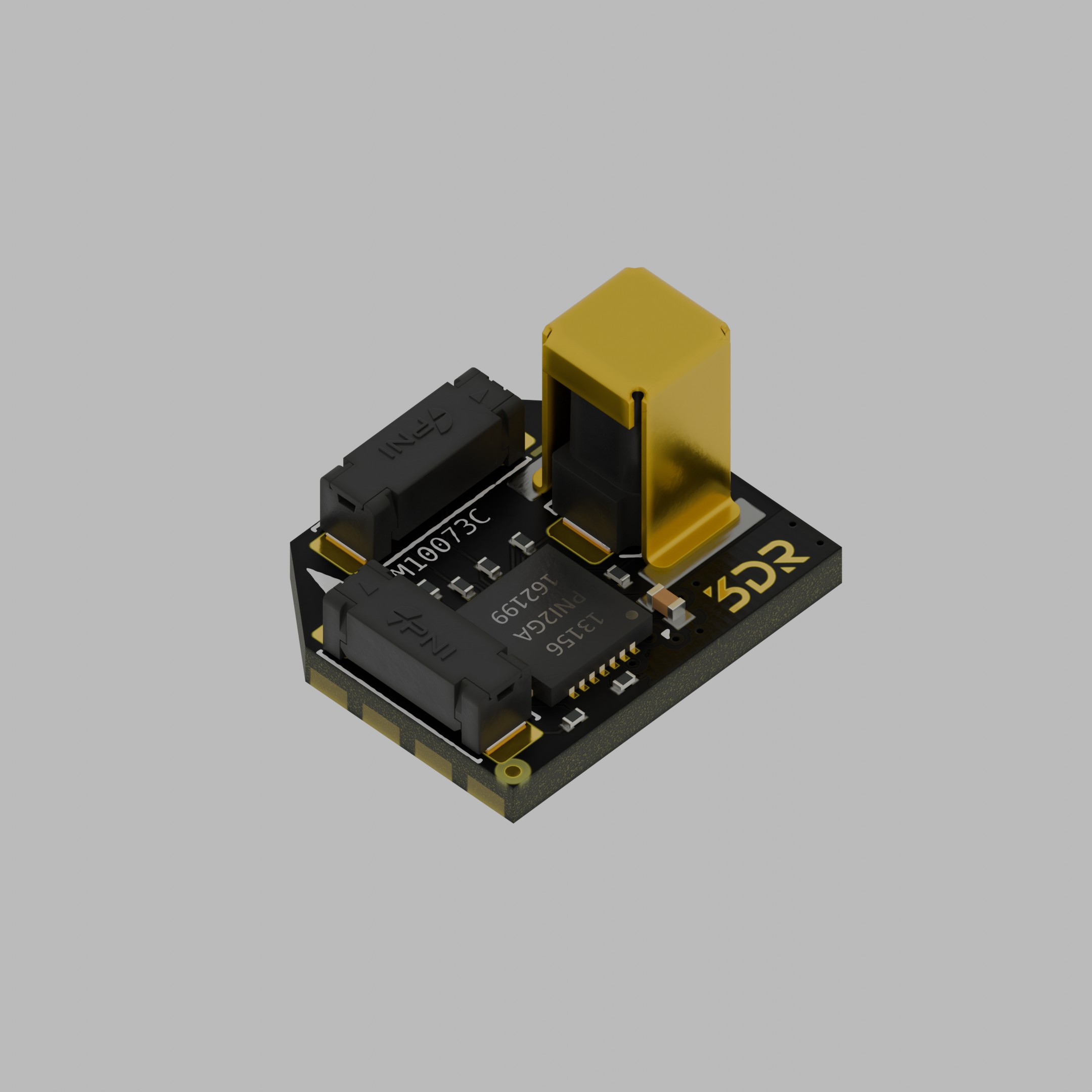

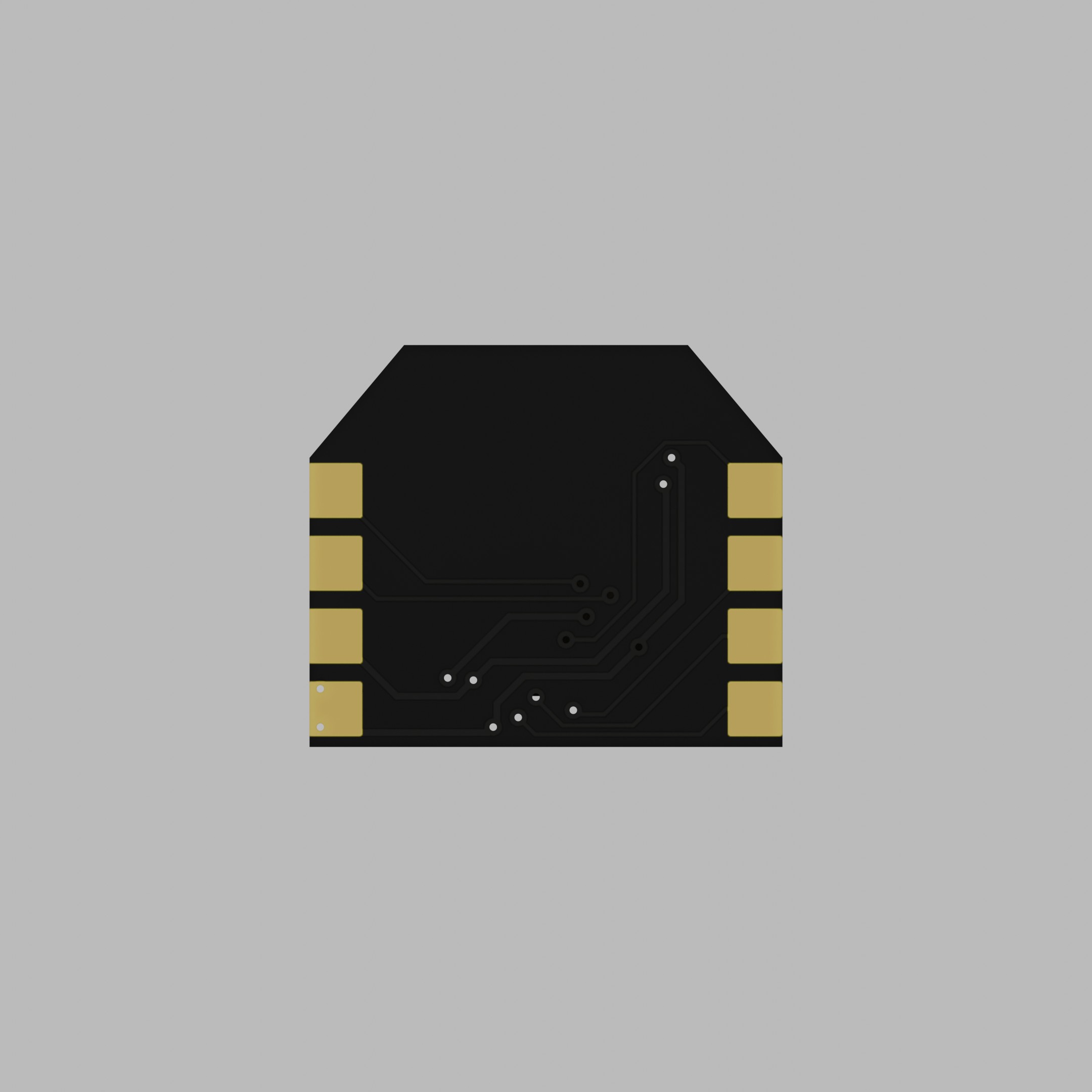

3D View
Specifications
| Specification | Value |
|---|---|
| Dimensions | 13 mm x 11.05 mm x 8.1 mm |
| Weight | 0.82 g |
| Sensitivity | 13nT |
| Noise | 15nT |
| Linearity over ± 200 uT | 0.50% |
| Field Measurement Range | ± 1100 uT |
| Current @ 8Hz, 3 Axes | 260 uA |
| Interface | SPI and I2C |
| Operating Temperature | -40°C to +85°C |
For electrical specifications and function description please refer to the datasheet.
