GNSS Comparison

Please check this brief comparison table of our gps lineup, if you have any questions please contact us

							.1	.2	.3

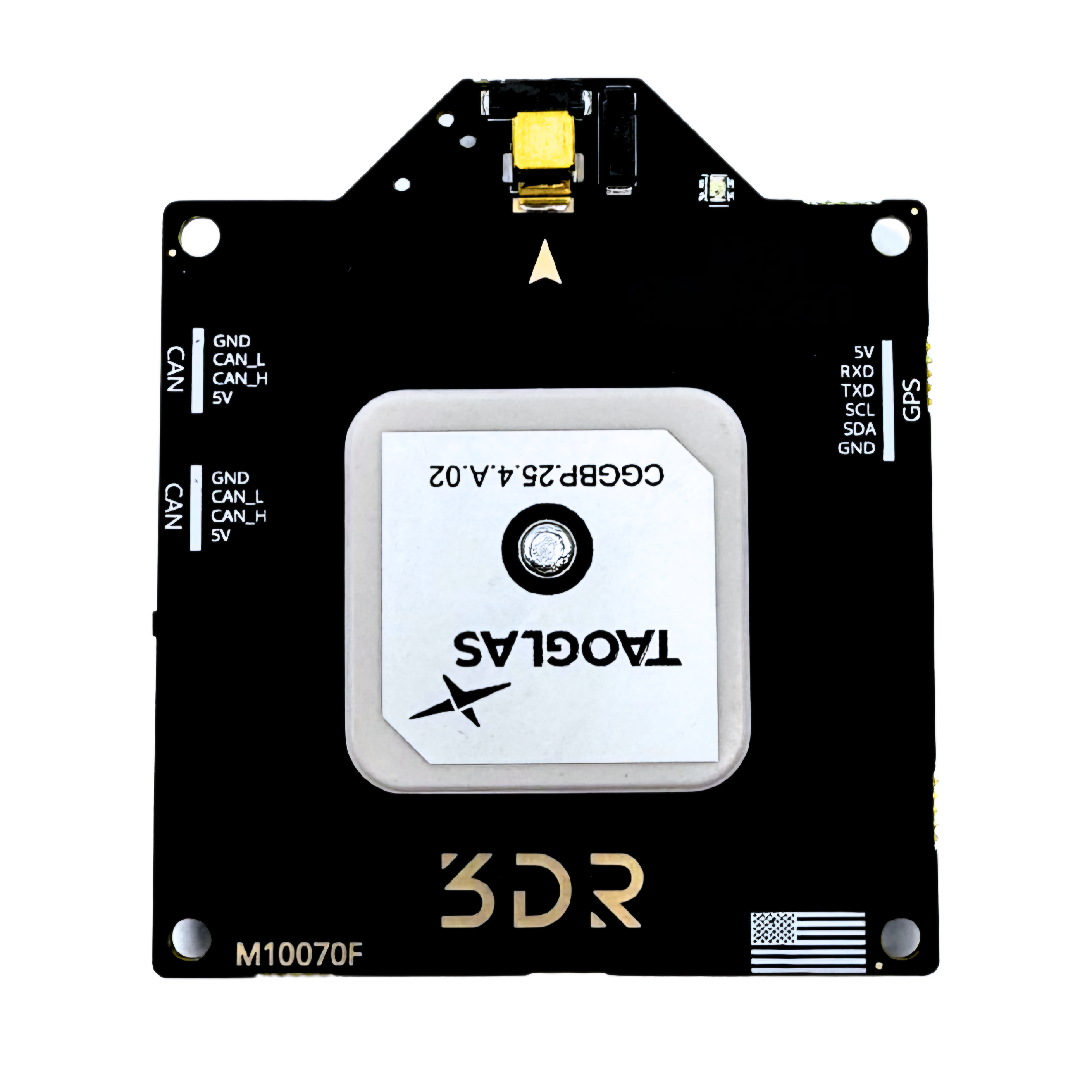

GNSS Receivers	Location One	Classic M9N	SAM Full size	SAM Med Size	M10S mini	ZED	QZP ZED "Advanced" w/WiFi	QZP Base GPS Dual feed M9N	CAN ZED
Status	in production	in production	in production	in production	in production	in production	in production	in production	in production
PN	M10070	M10034	M10037	M10038	M10136	M10020	M10130	R0015	M10041
HW revision	F	D	D	C	B	F	D	A	C
Price	136.9	74.9	74.9	76.9		499.9	540.0
GNSS Rx Module (* indicates unlisted option)	u-Blox NEO-M9N		U-blox SAM M8Q/M10Q*		U-blox M10S	ZED-F9P-0x-B	ZED-F9P-0x-B	u-Blox NEO-M9N	uBlox ZED-F9P-xx
GNSS bands	L1	L1	L1	L1	L1	L1, L2	L1, L2	L1	L1, L2
RTK capable	no	no	no	no	no	yes	yes	no	yes
External antenna	no	no	no	no	no	no	no	no	SMA and u.FL available
Mechanical related
Dimensions (Length x Width)	58 mm x 50.2 mm	46.8 mm x 40.6 mm	47 mm x 42 mm	36 mm x 31 mm	23 mm x 23 mm	81.2 mm x 70 mm	58mm x 72.2mm		40mmx40mm
Dimensions (Height)	11.4 mm	9 mm	10.9 mm	11.3 mm		12.7 mm	13.8mm
Screw Pattern	45.175 mm	33 mm x 33 mm	30 mm x 30 mm	none		75.5 mm x 63.9 mm	45mm x 51mm
Screw Size	M3	M2.5	M3	none		M3	M2
Weight	20 g	15 g	9.4 g	8.3 g	8.3 g	54.5 g	37.34g	12g TBC	7.50g
Peripherals							XPC240 series module
USB	yes	yes	no	no	no	yes	no	pads	yes
UART	yes	yes	yes	yes	yes	yes	yes	yes	yes
I2C	yes	yes	yes	yes	yes	no	yes	no	yes
CAN	yes	no	no	no	no	no	no	no	yes
QZP flat connector							yes	yes
Sensors
Mag	RM3100	IST8308	IST8308	IST8308	QMC5883L	~	IST8308/AK09940A	IST8308	RM3100
Baro	DPS310	~	~	~	~	~	~		~
