GPS "Classic" M9N w/IST8308 - M10034

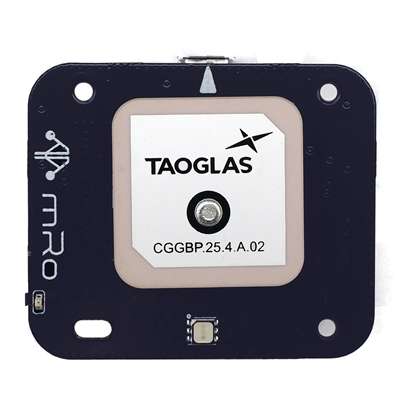

Features the latest Taoglas Antenna tuned for GPS + GLONASS + Galileo constellations, which provide a higher gain compared to any of its predecessors (from 1.5dBi to 5dBi). iSentek IST8308 is a 3-axis digital magnetometer is an integrated chip with 3-axis magnetic sensors, digital control logic, built-in temperature compensation circuit and self-test function. IST8308 provides an I2C digital output with fast mode up to 400kHz. The high output data rate, ultra-low noise, ultra-low hysteresis and excellent temperature drift features make it a perfect candidate for high accuracy applications.
Module: NEO-M9N The NEO-M9N module is built on the robust u-blox M9 GNSS chip, which provides exceptional sensitivity and acquisition times for all L1 GNSS systems. The u-blox M9 standard precision GNSS platform, which delivers meter-level accuracy, succeeds the well-known u-blox M8 product range. NEO-M9N supports concurrent reception of four GNSS. The high number of visible satellites enables the receiver to select the best signals. This maximizes the position accuracy, in particular under challenging conditions such as in deep urban canyons
Specifications
| Specifications | 3DR GPS u-Blox Neo-M9N – IST8308 |
|---|---|
| Constellations | USA (GPS), Russia(GLONASS), Europe (Galileo) & China (BeiDou). |
| Compass | iSentek IST8308 |
| Barometer | No |
| RTK ready | No |
| USB Port | Yes |
| CAN ready | No |
| Minimum and Maximum Operating Temperature | -20 ~ 80 °C |
| Notify LED | Yes (RGB) |
| Dimensions | 40mm x 47mm |
| Weight | 16.60 grams [.586 oz] |
| Mounting Holes | M2.5 on a 33mm x 32mm |
| Case | Optional |
| Connectors | 6-Pins JST-GH Auxiliary I2C Port |
| [Quality] and Typical Platforms | -Multirotor -Rover -Fixed-Wing -Boats -VTOL -Automatic Tractors -Others |
| Other Features | RGB LED driver integrated. PPS pad for easy access. *On-board safety switch. |
Electrical
| Electrical Specifications | 3DR GPS u-Blox Neo-M9N – IST8308 |
|---|---|
| Operating voltage | 4.5 - 5.5V |
| Current draw (typical) | 20mA |
| Current draw (burst) | 40mA |
Changelog
Rev D - Change to IS31FL3195 NTF LED driver
The full changelog for this product can be found here.
Firmware
The 3DR GPS u-Blox Neo-M9N Dual Compass IST8308 is compatible with the following firmware:
ArduPilot
- ArduCopter 4.x
- ArduPlane 4.x
- ArduRover 4.x
PX4
- v1.11.0 and later
Normal Usage Guide
All connectors follow the Dronecode connector standard to guarantee a plug and play experience with our flight controllers. Unless noted otherwise, all ports use a JST-GH connector.
Pinouts
I²C Port
| Pin | Color | Signal | TTL/Voltage Level |
|---|---|---|---|
| 1 | red | VCC | 5V |
| 2 | black | I2C_SCL (pull-up on autopilot) | 3V3 |
| 3 | black | I2C_SDA (pull-up on autopilot) | 3V3 |
| 4 | black | GND | N/A |
GPS Port
| Pin | Color | Signal | TTL/Voltage Level |
|---|---|---|---|
| 1 | red | VCC | 5V |
| 2 | black | RX (data in) | 3V3 |
| 3 | black | TX (data out) | 3V3 |
| 4 | black | I2C_SCL | 3V3 |
| 5 | black | I2C_SDA | 3V3 |
| 6 | black | GND | N/A |
Wiring
| Pilot | GNSS |
|---|---|
| VCC | VCC |
| TX | RX |
| RX | TX |
| I2C_SCL | I2C_SCL |
| I2C_SDA | I2C_SDA |
| GND | GND |
Tutorials
3D Model
Coming soon...
